PCECG-500 POCKET ECG MONITOR available july 2024
Category: Palm ECG next >> << previous browse:


	Stock availability: 0 Product Code: 33236 Unit of sale: 1 pc. Minimum order: 1 Type: Medical device Class: II A EAN/UPC: 6971049341291 GMDN: 16231
certificates Download certificates PCECG-500 POCKET ECG MONITOR available july 2024 CE Certificate declaration of conformity GIMA DISTRIBUTOR Download declaration of conformity PCECG-500 POCKET ECG MONITOR available july 2024 English download catalogue page

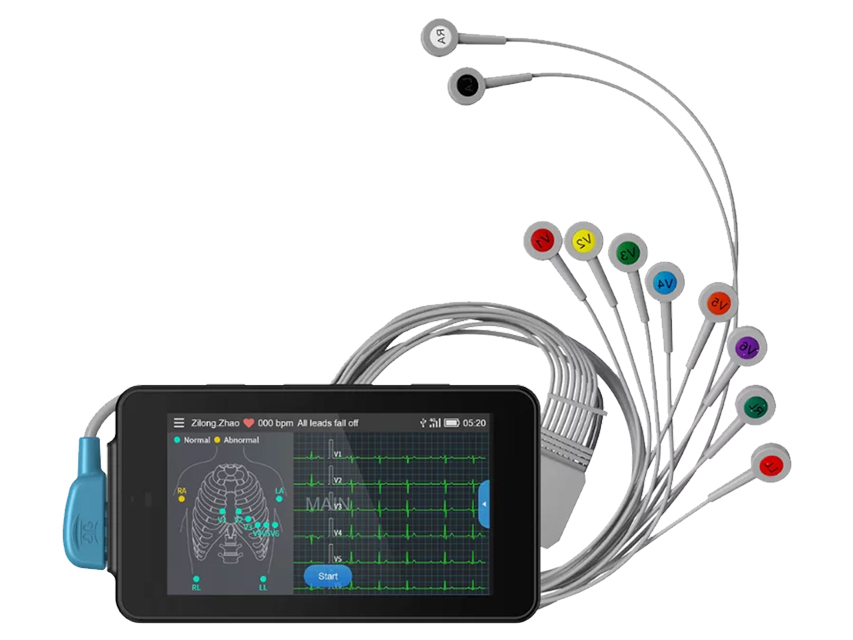

PCECG-500 POCKET ECG MONITOR - 6/12 leads

Portable, lightweight and easy to use ECG monitor.
It provides collection, analysis, storage and transmission of 12-lead ECG information, which in combination with the Glasgow algorithm, ensures complete and immediate analysis.
Automatic pacing detection and marking.
- Glasgow algorithm: provides an automatic analysis of the acquired ECG waveforms and output measurement values and diagnostic results
- remote reporting and data transfer via E-mail and Wi-Fi transmission
- connection to external printer via Wi-Fi
- HD camera
- more than 24 hours continuous working time
- 4.46” LCD colour touch screen
- automatic and R-R mode

Easy to use, light and portable.
It only weighs 250 g, about the size of a smartphone

6/12 lead waveform supports synchronous acquisition and display of 6/12 lead waveform, as well as heart rate detection and indication of poor electrode contact.

Method: peak-peak detection
Measurement range: 30-300 bpm; ± 1 bpm
Leads: 6/12-lead synchronous acquisition and analysis
Sensitivity: 2.5, 5, 10, 20 mm/Mv; ± 5%
Input impedance: =50MO (10Hz)
Sampling
- rate: 2000 samples/sec
- modes: pre-sampling, real-time sampling, periodic sampling, triggered sampling
CMRR: =100dB (AC filter on)
Frequency response: 0.05Hz-150Hz+0.4dB(-3.0dB), 10Hz
Time constant: =3.2s
Filter:
- AC filter 50Hz, 60Hz, Off
- EMG (Electromyography) filter 25Hz, 35Hz, 45Hz, Off
- ADS (Anti-Drift System) filter 0.05Hz, 0.32Hz, 0.67Hz
- Lowpass filter 75Hz, 100Hz,150Hz, Off
Speed: 5, 6.25, 10, 12.5, 25, 50 mm/s; ±3%
Power supply: built-in rechargeable lithium-ion battery, 3.8V 6000mAh
Charging time: 8 hours
Display: 4.46" colour LCD touchscreen, 480x854 pixels resolution
Size - weight: 134×74×17 mm - 250 g (including battery)
